Combustible Dust Explosions
Flame Propagation, Confinement, and Secondary Explosions
Walk into almost any facility processing fine powders, and you’ll likely notice a thin layer of dust coating beams, ductwork, or equipment surfaces. That accumulation is more than just housekeeping residue—it’s potential fuel waiting for the right spark. In several well‑documented incidents, an ignition inside a dust collector or conveying line triggered a chain of secondary explosions that leveled entire buildings within seconds.
These events aren’t random. The transition from a small flame to devastating combustible dust explosions follows a predictable sequence of physical mechanisms from dispersion, ignition, confinement, to rapid flame acceleration. Understanding these fundamentals is essential not just for preventing incidents but for meeting evolving safety expectations.
This article focuses on the behavior of combustible dust under varying conditions and the mechanisms that drive flame propagation, pressure rise, and secondary explosions. It explains how dust fires transition into deflagrations and why facility layout, process conditions, and accumulated dust play such a significant role in explosion severity.
The blog covers the following technical aspects:
- Explosion Pentagon: Five Elements of Combustible Dust Explosions
- Flash Fire Dynamics: How Suspended Combustible Dust Burns in Open Areas
- Confined Dust Explosions: KSt, Pmax, and Pressure Rise Rates
- Secondary Dust Explosions: Why Initial Events Become Catastrophic

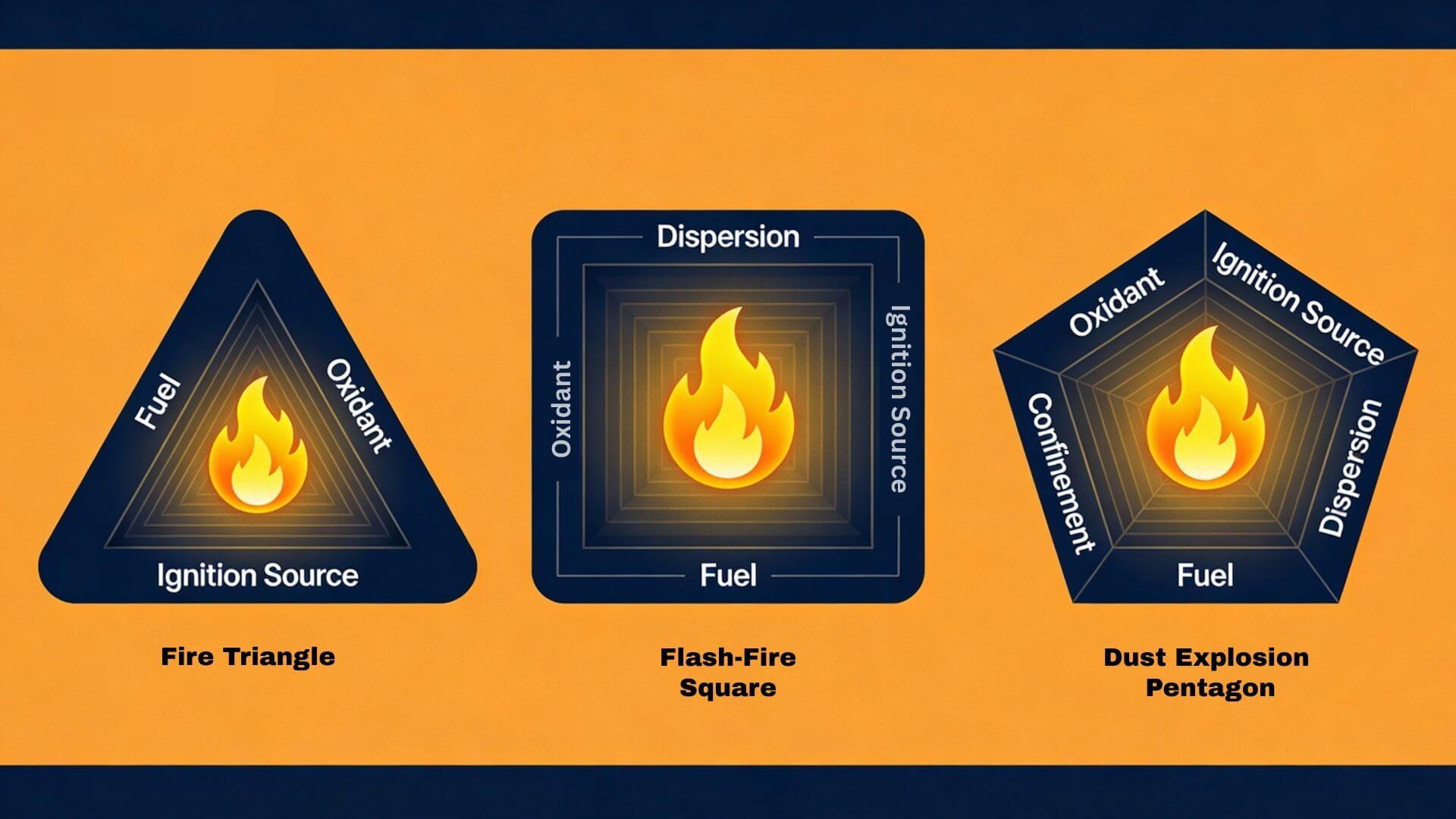

Explosion Pentagon: Five Elements of Combustible Dust Explosions
The fire triangle describes the fundamentals of combustion: fuel, oxidant, and ignition source. For settled solids, burning typically stays localized. When particulate becomes airborne, two additional factors transform simple burning into an explosion event: dispersion and confinement. These five elements form the explosion pentagon.
Fuel: Combustible dust with particle sizes typically below 420 microns can be considered dangerous if airborne as those particulates are small enough to be considered as a deflagration hazard. Surface area per unit mass increases dramatically as particle diameter decreases, accelerating oxidation rates.
Oxidant: Ambient air provides sufficient oxygen. Enriched atmospheres accelerate flame speed, but standard atmospheric conditions support deflagration in most industrial dust.
Ignition source: Sparks from mechanical impact, hot bearing surfaces, friction heating, electrostatic discharge, or smoldering material. Energy requirements vary by material but can be surprisingly low—some metal dusts ignite from static discharge below 1 millijoule.
Dispersion: A suspended cloud where concentration exceeds the minimum explosible concentration. Below this threshold, flame cannot propagate through the mixture regardless of ignition energy.
Confinement or congestion: Geometry that restricts expanding combustion gases. Complete enclosure in vessels or partial restrictions in congested piping networks and building spaces.
Removing any single element prevents an explosion. The most reliable protection strategies attack multiple elements simultaneously:
Explosion venting reduces confinement
Housekeeping limits available fuel
Ignition control targets the initiation mechanism
Inerting displaces oxygen
Flash Fire Dynamics: How Suspended Combustible Dust Burns in Open Areas
Settled powder appears stable until disturbed. Operations such as bag dumping, pneumatic transfer, filter pulse cleaning, and vent discharges can suspend material in air. When airborne concentration reaches the minimum explosible concentration (MEC) in an open or semi-confined space, ignition produces a flash fire rather than a full explosion. These flash fires often represent the initial stage of combustible dust explosions when dispersion occurs without significant confinement.
The flame front travels through the suspended cloud as a moving combustion zone. Anyone within this cloud experiences severe thermal radiation and potential flame impingement. Burn injuries occur within seconds.
Flame speed depends on interacting variables:
- Particle size and morphology: Finer particles present more surface area per unit mass, increasing reaction rates. Irregular shapes with high aspect ratios (flakes, fibers) burn differently than spherical particles.
Cloud concentration relative to MEC: At concentrations just above MEC, flame speed remains relatively low. Peak velocity occurs at concentrations several times above MEC. Excessive concentration eventually limits oxygen availability and can reduce reactivity.
Turbulence intensity and flow pattern: Turbulent clouds burn faster than quiescent suspensions. Eddies increase mixing between fuel particles and oxygen, accelerating heat release. Flow patterns determine whether the flame front accelerates or decays.
Ignition energy and location: High-energy sources create larger initial flame kernels. Ignition near the cloud center produces symmetric propagation. Edge ignition creates asymmetric flame development.
Below the MEC, mixtures cannot sustain combustion regardless of ignition strength. Flash fire propagation stops when the concentration drops below the MEC or when the cloud disperses beyond sustainable geometry.
Dispersion control involves minimizing drop heights during material transfer, enclosing transfer points to prevent fugitive emissions, routing explosion vent discharges away from occupied zones, and scheduling operations to avoid simultaneous dust suspension in adjacent areas. These measures keep airborne concentrations below ignitable thresholds or separate potential ignition sources from transient dust clouds.
Confined Dust Explosions: KSt, Pmax, and Pressure Rise Rates
Flash fires transition to explosions when confinement channels combustion energy into pressure rise. In combustible dust explosions, complete confinement occurs in silos, hoppers, dust collectors, dryers, and sealed process vessels. Partial confinement develops in congested layouts, duct networks, or building spaces where structural elements restrict gas expansion.
Obstacles in the flame path generate turbulence, increasing flame surface area and accelerating heat release. Faster heat release drives higher pressure rise rates (dP/dtmax). In a closed volume, pressure builds until the enclosure ruptures or a relief system activates.
The deflagration index (KSt) quantifies this violence in combustible dust explosions. Measured in bar·m/s-1, KSt describes how rapidly pressure increases during combustion in a standard 20-liter test sphere.
Materials are classified into dust explosion classes:
St 0: KSt = 0 (non-explosible)
St 1: 0 < KSt ≤ 200 (weak to moderate)
St 2: 200 < KSt ≤ 300 (strong)
St 3: KSt > 300 (very strong)
As an example, aluminum dust typically falls into St 3, while many organic materials range from St 1 to St 2. Maximum explosion pressure (Pmax) indicates peak overpressure during complete combustion in a closed vessel, typically 7 to 10 bar gauge for most dusts in air.
Vent sizing and structural design will depend on KSt, Pmax, vessel volume, and allowable reduced explosion pressure (Pred). Mitigation technologies address overpressure through different mechanisms:
Explosion venting panels: Burst discs or hinged panels open at predetermined pressure to relieve combustion energy before enclosure failure. Vent sizing calculations depend on KSt , Pmax, vessel volume, and allowable reduced explosion pressure (Pred). Higher KSt values require larger vent areas. Vent sizing is covered by NFPA 68, Standard on Explosion Protection by Deflagration Venting.
Isolation valves: Rapid-acting barriers that close within milliseconds to stop flame transmission through ducts and prevent pressure piling in interconnected equipment. Chemical or mechanical actuation systems respond to pressure or optical flame detection.
Suppression systems: Detect initial pressure rise (typically 0.05 to 0.2 bar) and discharge suppressant (sodium bicarbonate, monoammonium phosphate, or water) within 50 to 100 milliseconds. Suppressant quenches the flame before pressure reaches destructive levels.
Each system relies on material-specific test data. Vent panels designed for one dust may fail catastrophically for another with a higher KSt, even if both appear similar during handling.
Secondary Dust Explosions: Why Initial Events Become Catastrophic
Most catastrophic combustible dust explosions originate not from the initial ignition but from subsequent events. A primary fire or explosion inside process equipment produces pressure waves and flame jets that disturb accumulated layers on beams, ducts, and overhead surfaces. Lifted material forms suspended clouds that ignite from residual flames or hot combustion products, producing secondary explosions far more severe than the initial event.
The sequence follows this progression:
Stage 1 – Accumulation: Fugitive emissions from material handling operations deposit dust on horizontal and near-horizontal surfaces. Deposition rates vary by process intensity, ventilation effectiveness, and housekeeping frequency.
Stage 2 – Primary ignition: An ignition source inside process equipment initiates combustion. Common sources include filter fires from smoldering material, overheated bearings, friction sparks from mechanical failure, or electrostatic discharge during powder transfer.
Stage 3 – Dispersion: Pressure waves from the primary event or vented flames disturb accumulated layers in surrounding areas. Even modest overpressure (0.1 to 0.5 bar) lifts settled dust effectively.
Stage 4 – Secondary ignition: Dispersed clouds reach ignitable concentrations and combust when exposed to flames, hot gases, or embers from the primary event. Multiple secondary explosions can occur sequentially through interconnected plant volumes.
The 2008 Imperial Sugar refinery incident exemplifies this combustible dust explosions mechanism. A confined explosion inside a steel belt conveyor enclosure triggered widespread secondary deflagrations fueled by accumulated sugar dust across multiple buildings. The primary event caused manageable damage; secondary explosions killed 14 workers and destroyed much of the facility. Prevention depends on maintaining fugitive dust levels below hazardous thresholds.
Secondary explosion prevention represents the most important layer of protection because it prevents localized incidents from escalating into facility-wide disasters. Effective strategies include:
Source containment: Enclosed transfer points, sealed conveyor systems, and dust collection prevent fugitive emissions at generation points.
Routine cleaning protocols: Scheduled vacuum or wet cleaning removes settled layers before accumulation reaches dangerous depths. NFPA 660 recommends cleaning so accumulation does not exceed 1/32 inch (0.8 mm) over 5% of a zone’s floor area.
Inspection programs: Visual audits or automated monitoring verify that housekeeping frequency matches actual deposition rates. Many facilities underestimate accumulation rates and clean less frequently than needed.
Physical barriers: Separation walls and fire-rated partitions limit secondary explosion propagation between process areas and occupied spaces.
Combustible dust explosions are not isolated or unpredictable events. Settled dust can be dispersed during routine operations, forming clouds that support flame propagation. In open areas, ignition leads to flash fires. When combustion occurs within confined or congested spaces, pressure rises rapidly and an explosion develops. If accumulated layers are disturbed by the initial event, secondary explosions can follow, often producing the most severe damage.
These outcomes, including combustible dust explosions, result from the interaction of dispersion, ignition, confinement, and accumulation rather than from a single failure. Understanding how these mechanisms combine explains why small ignition events can escalate into widespread destruction and why controlling any one element can interrupt that progression.
