5 Steps to Combustible Dust Safety
A Technical Guide to Managing Combustible Dust Hazards
Combustible dust safety begins with understanding how finely divided materials behave when exposed to ignition, dispersion, and confinement conditions. A reliable program builds from characterization testing and progresses through hazard identification and analysis, compliance verification, and engineering implementation. Under NFPA 652/NFPA 660, every facility that handles or processes particulate solids capable of burning or exploding must evaluate combustible dust hazards and develop an integrated management strategy.

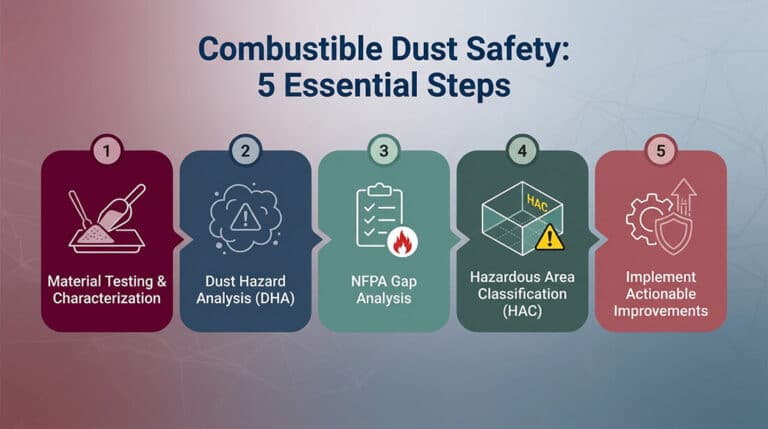

This guide outlines five essential steps for establishing a technical foundation for preventing fire, flash fire, and explosion events. The following five steps outline how facilities evaluate their materials, analyze their processes, classify hazardous locations, and implement improvements that reduce risk throughout daily operations.
The blog covers the following technical aspects:
Step 1. Material Testing & Characterization
Step 2. Dust Hazard Analysis (DHA)
Step 3. Combustible Dust Management Systems Gap Analysis
Step 4. Hazardous Area Classification (HAC)
Step 5. Implement Actionable Improvements
Step 1. Material Testing & Characterization
Every dust safety program starts with reliable laboratory data. Whether materials are milled powders, fine crystals, or generated residues, testing provides the quantitative basis for determining fire, flash fire, and explosion risk.
Combustible dust consists of tiny solid particles that can become suspended in the air and ignite under certain conditions, creating serious risks of fire or explosion. Many common materials—wood, grain, sugar, metals, plastics—can generate these dust hazards. Because these fine particles often go unnoticed and their risks are underestimated, understanding your facility’s combustible dust profile is critical for protecting your people, property, and business operations.
Representative samples are assessed for combustibility (Can it burn?), explosibility (Can it deflagrate when dispersed?), ignition sensitivity (Under what conditions will it ignite?), and explosion severity (How damaging will an explosion be?). NFPA 652/ NFPA 660 requires that the owner/operator understand these characteristics. Facilities must proactively assess whether materials in use are combustible or explosible. Where prior data or manufacturer qualification are lacking, representative samples must be subjected to proper screening and lab testing in accordance with recognized methods.
The simplest and most direct way to screen for combustible dust starts with basic combustibility and explosibility screening tests conducted on representative samples from your facility.
Screening tests quickly determine:
- Is the material combustible—Can it catch and sustain fire in a dust layer or bulk form?
Is the material explosible—Can it ignite and explode when dispersed in the air as a dust cloud?
Determining Combustibility (Fire Hazard)
If material combustibility is unknown, laboratory testing is required to determine if a layer or bulk pile of the dust can ignite and sustain combustion.
This can be assessed using UN Test Method N.1 Readily Combustible Solids (Burn Rate) or equivalent test methods (Burning Behavior/Severity)
If the material ignites and continues to propagate combustion or produce sparks after the removal of the ignition source, it is considered combustible.
Determining Explosibility (Explosion Hazard)
If explosibility is unknown, cloud testing using the ASTM E1226 Go/No-Go screening is performed.
If a dust cloud sustains deflagration under the test protocol, it is classified as explosible.
If already confirmed as explosible, the dust should automatically be considered combustible as well.
These tests give a clear “yes” or “no” answer about the dust’s hazard potential.
Additional Characterization: Ignition Sensitivity and Explosion Severity
Once it is known that a dust is combustible or explosible, the next step is to perform additional laboratory testing to understand how sensitive the dust is to ignition and how powerful an explosion could be. This extra testing is essential because it provides the detailed data needed to design appropriate engineering controls and ensure regulatory compliance. The testing breaks down into two major groups: ignition sensitivity and explosion severity.
Explosion Severity Tests:
Kst and Pmax (Pmax, Kst, dP/dtmax) values: These numbers measure the force of an explosion inside confined spaces like dust collectors or equipment enclosures.
Kst reflects the maximum rate of pressure rise, while Pmax indicates the peak pressure during an explosion. Knowing these helps you select proper venting or suppression systems.
Minimum Explosible Concentration (MEC): This determines the lowest concentration of airborne dust required to support a propagating explosion. This is key to understanding how dusty an area can get before explosion risk rises.
Ignition Sensitivity Tests:
Minimum Ignition Energy (MIE): This measures how much energy is needed to ignite the dust cloud, which helps assess risks from static sparks or electrical arcs.
Minimum Ignition Temperature (MIT) for Cloud and Layer: This test identifies the lowest temperature of a hot surface that could ignite the dust, either suspended in air (cloud) or accumulated in layers.
Limiting Oxygen Concentration (LOC): This shows the minimum oxygen level below which the dust won’t ignite, helping with inerting or ventilation strategies.
Accurate data ensures process designs (e.g., dust collection, containment strength, vent sizing, explosion isolation) are based on real material behavior, not assumptions. Sample representativeness is critical, as dust taken from filter cartridges or floors often differs in particle size or moisture content from the material in pneumatic transfer or bag dumping operations. Testing multiple materials from different process stages may be justified for complex plants.
Step 2. Dust Hazard Analysis (DHA)
The DHA is the technical risk assessment central to NFPA 652/660 compliance. It identifies where combustible dust fire, flash fire, or explosion hazards may exist with the presence of one or more combustible particulate solids in a process or facility and recommends appropriate protection or mitigation measures.
A thorough DHA integrates laboratory data with site conditions, process flow diagrams, and ignition source evaluations to identify credible scenarios. Analysts review dust generation points, enclosure designs, and safeguard effectiveness (containment, venting, suppression, isolation, grounding, etc.).
DHA Methodology Approaches
Two recognized DHA approaches may be applied:
Prescriptive DHA: This approach follows established NFPA protocols and uses defined checklists and criteria. It is straightforward and aligns with conventional regulatory expectations, making it suitable for many standard industrial processes.
Performance-Based DHA: This method relies on engineering analysis and tailored risk evaluations to address complex or atypical hazards. It provides flexibility when prescriptive measures are not practical or when unique process conditions require customized solutions.
DHAs must be reviewed and updated at least every five years, or sooner when new materials, process changes, or incidents occur. Thorough revalidations demonstrate continual improvement and regulatory diligence.
What Are the Outcomes of a DHA?
A Dust Hazard Analysis produces a clear, actionable understanding of combustible dust risks across your facility.
Typical DHA outcomes include:
Identification of Hazard Locations and Types: The DHA systematically maps where combustible dust is present or generated and identifies the types of hazards these materials can present to reduce the risk of fire, explosion, and unexpected operational downtime.
Assessment of Potential Ignition Sources: The analysis documents all credible ignition sources, such as electrical equipment, mechanical sparks, static discharge, or hot surfaces, that could trigger dust incidents in critical zones.
Evaluation of Current Controls and Practices: A thorough review is conducted on how existing engineering controls (ventilation, dust collection), procedures (housekeeping, e-stop protocols), and administrative measures (training, maintenance) are performing to mitigate dust and ignition risks.
Support for Compliance and Risk Reduction: The DHA ties findings directly to regulatory (NFPA, OSHA) requirements and industry standards, helping facilities prioritize upgrades or procedural changes that enhance workplace safety, protect personnel, and minimize the chance of costly interruptions.
These outcomes establish a solid foundation for dust hazard management and ensure organized, comprehensive documentation that facilitates audits, insurance reviews, and long-term compliance. Through a well-structured DHA, facilities gain the necessary information and clarity to support continuous improvement in workplace safety and operational reliability.
Step 3. Combustible Dust Management Systems Gap Analysis
In addition to the hazards identified and controlled from the DHA, management systems should also be in place to support the safeguards. A gap analysis is a systematic process used to evaluate an organization’s current combustible dust management system including safety programs, procedures, and controls against relevant regulatory requirements, recognized NFPA standards, and industry best practices. The goal is to identify discrepancies—referred to as “gaps”—between existing practices and those required for compliance, risk reduction, and operational excellence.
By identifying these gaps, facilities can prioritize corrective actions, allocate resources efficiently, and develop focused improvement plans that enhance safety management and operational resilience. In high-hazard industries, gap analysis serves as a proactive tool to strengthen safety management systems and supports ongoing regulatory alignment.
Core areas evaluated in a combustible dust gap analysis include:
Documentation Review: Examines Dust Hazard Analysis (DHA) methodology, scope, and the integration of accurate combustibility and explosibility test data. It ensures that documentation reflects current process conditions and materials.
Engineering Controls Assessment: Reviews dust collection and ventilation systems for proper placement (inside versus outside), adherence to explosion protection standards (compliance with NFPA 68/69 venting), and presence of explosion isolation devices on critical equipment.
Housekeeping and Administrative Controls: Evaluates housekeeping frequency relative to measured dust accumulation thickness, effectiveness of ignition source management such as hot work and welding permits, and static electricity mitigation programs.
Mechanical Integrity and Maintenance: Assesses maintenance regimes for bearings, belts, filters, and other components to prevent ignition from overheating, friction, or equipment deterioration.
The output of the gap analysis is a detailed comparison of current facility programs and practices against NFPA and regulatory expectations, identifying deficiencies, inconsistencies, and omissions.
This produces:
A summary of identified gaps or non-conformances specific to combustible dust safety.
Technical and practical, prioritized recommendations to close each identified gap.
Guidance on risk-based prioritization to focus efforts and resources where they yield maximum safety benefit.
Clarification on opportunities to apply prescriptive versus performance-based compliance approaches, particularly relevant with evolving NFPA 660 provisions.
When effectively conducted, a combustible dust gap analysis translates often broad NFPA requirements into concrete action plans tailored to the facility’s unique processes and risks. This equips safety professionals and management with clear direction for incremental and sustainable program improvement.

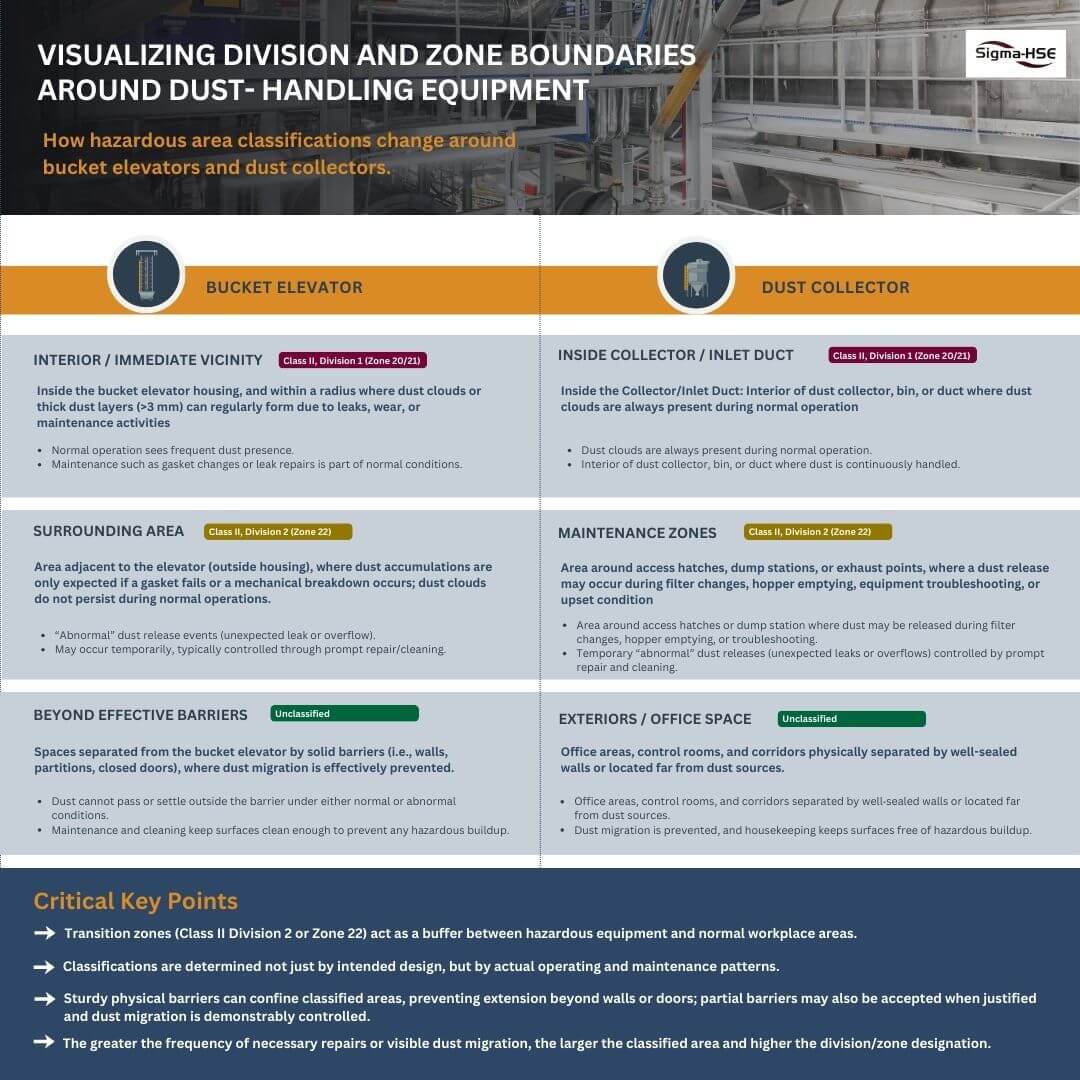

Step 4. Hazardous Area Classification (HAC)
Hazardous Area Classification (HAC) establishes where electrical or mechanical equipment may be exposed to flammable or combustible atmospheres and ensures that appropriate design, installation, and maintenance precautions are applied. For dust-handling facilities, HAC is governed primarily by NFPA 499 and NFPA 70 (National Electrical Code), which define how areas are categorized based on the frequency and duration of ignitable dust presence.
A location is classified according to the likelihood and persistence of dust clouds or accumulations capable of ignition. In the dust domain, this includes Class II (combustible dust) subdivided by expected hazard frequency.
Class II – Combustible Dusts
Division 1 or Zone 20 / Zone 21: Assigned where combustible dust clouds or surface layers can be present during normal operations. “Normal” includes situations such as equipment that consistently leaks dust or requires frequent repair that results in dust release, for example, worn rotary valves, bucket elevators, or filters with recurring gasket failures.
Even routine maintenance that regularly releases dust is considered part of normal operating conditions. A recurring or persistent dust layer thicker than about 3 mm (⅛ inch) under these operating conditions may justify Division 1 or Zone 20/21 classification.
Division 2 or Zone 22: Applied where ignitable dust clouds or problematic accumulations are unlikely in routine service and would occur only under abnormal conditions (for instance, a malfunction, loss of ventilation, or seal failure). “Abnormal” in this context refers to events that are unusual but credible, not catastrophic failures.
HAC boundaries between divisions or zones seldom change abruptly. A practical safety margin is typically applied between areas. For example, a transition zone of Division 2 or Zone 22 often surrounds a Division 1 or Zone 20 area to account for partial enclosures, imperfect separations, or occasional dust migration. Where sturdy, dust-tight barriers (such as unpierced solid walls) exist, the classified area generally does not extend beyond them.
Practical Application
HAC is both an electrical safety and process safety tool. Correct classification ensures that motors, sensors, lighting, and other electrical devices meet suitable ratings (such as dust ignition-proof enclosures or temperature-limited designs). When integrated with the DHA, HAC findings guide design modifications, such as relocating unsealed motors outside of classified boundaries, sealing conduit entries, improving dust-tight enclosures, or revising housekeeping practices to maintain “unclassified” status wherever feasible.
Ultimately, the classification process should align with how the process actually operates, not how it is intended to operate on paper. Maintenance frequency, equipment condition, ventilation effectiveness, and cleaning discipline often influence the classification outcome as much as the material properties themselves. Documenting these operational assumptions clearly within the HAC report ensures transparency and supports smooth communication during audits and NFPA compliance evaluations.
Step 5. Implement Actionable Improvements
The ultimate test of combustible dust management is implementation. Actions derived from material testing, DHA findings, and gap analyses should be prioritized using risk-ranking or cost-benefit methods to ensure measurable safety gains.
Typical improvement areas include:
Engineering Upgrades: Improved dust collection design, vent reorientation, stronger explosion isolation valves, or spark detection systems.
Procedural Enhancements: Revised housekeeping schedules, maintenance inspections, conductive flooring, and operator training.
Monitoring: Installation of differential pressure sensors, temperature probes, and early-warning systems.
Documentation: Updated P&IDs, training logs, and hazard communication procedures to maintain NFPA traceability.
Continuous improvement is essential. Dust properties may vary as suppliers, recipes, or process conditions change, and routine review ensures long-term compliance and resilience. Integrating monitoring trends and incident learnings into DHA revalidations closes the safety loop.
Effective combustible dust management is not a single test or report, it is a continuous technical and operational journey. By systematically characterizing materials, analyzing facility hazards, benchmarking to NFPA standards, classifying hazardous areas, and executing practical improvements, facilities can demonstrate engineering due diligence, regulatory compliance, and a genuine commitment to process safety.
A technically sound program transforms combustible dust data into well-informed design, maintenance, and operational decisions to protect personnel, equipment, and business continuity.
