Case Study
Reactive Mischarge Scenario Evaluation: Chemical Reaction Hazard Assessment
Client Overview
During a comprehensive HAZOP assessment conducted for a manufacturer specializing in natural products and ingredients, an issue was identified concerning the unintended mixing of two separate raw materials. This potential hazard necessitated a detailed Chemical Reaction Hazard Assessment to evaluate reactive behavior and ensure safe process operation.
Hazard Scenario
The facility’s tanker unloading station was scheduled to handle concentrated nitric acid (HNO3) and isopropyl alcohol (C3H8O) at different intervals. However, an identified small dead leg within the piping raised concerns about leftover residues accumulating between unloading operations.
The chemical interaction between nitric acid and isopropyl alcohol is notably aggressive and has been linked to prior industrial accidents. Adding to this complexity is the synthesis of rocket propellant compounds as by-products, which significantly elevates the risk profile. Due to unclear reaction mechanisms and products in existing literature, thorough reactive chemical testing was essential as part of the overall Chemical Reaction Hazard Assessment.
Objectives
The goal was to quantify the rates of pressure and temperature increase and determine the adiabatic temperature rise when these substances come into contact. This assessment would verify whether the current venting systems on-site were adequate or if modifications to facility design or operational procedures were warranted.
Testing Approach
To replicate the client’s actual process, testing was conducted using the ARSST apparatus under an air atmosphere, containing nitric acid securely within the test setup. Isopropyl alcohol was precisely measured with a dosing syringe and carefully introduced into the containment vessel for analysis.
The ARSST chamber was kept at ambient pressure with air to simulate the accidental mixing scenario accurately, then heated gradually at a controlled rate of 2 °C/min to 25 °C, where it was stabilized. Utilizing polynomial heating controls during reagent additions enabled near-adiabatic quantification of reaction enthalpies and temperature spikes, supporting the Chemical Reaction Hazard Assessment findings.
Key Insights and Outcomes
The evaluation revealed that the reaction progresses in two distinct stages. Initially, an intermediate compound is formed which remains in liquid or solvent form at lower temperatures.
The subsequent secondary reaction exhibits considerably higher hazard potential marked by substantial reaction heat, rapid temperature escalation, and prolific generation of permanent gases that could threaten containment integrity. Utilizing the data, worst-case scenarios for pressure relief and vent sizing were established.
These findings supported the engineering and validation of safe processing operations guided by a data-driven Chemical Reaction Hazard Assessment.
Real-World Lessons and Safety Implications
Several documented industrial events show how the unintended mixing of nitric acid and isopropyl alcohol can escalate rapidly if not identified and controlled. These examples reinforce the value of detailed reactive hazard evaluations and proper system design:

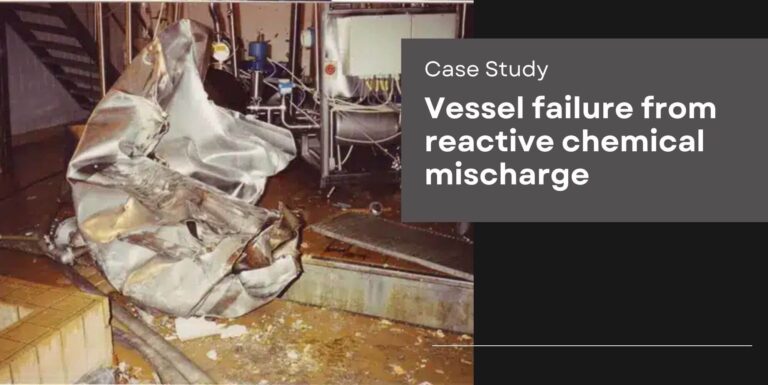

- 1997 Denmark Brewery Explosion: A severe explosion occurred after nitric acid contaminated a tank with isopropanol, producing highly explosive by-products that destroyed equipment and released toxic gases.
- OSHA-Reported Container Rupture: An incident where mixing a high-concentration isopropyl alcohol and nitric acid solution caused container failure, risking operator injury.
- University Laboratory Chemical Spray: Improper labeling led to inadvertent mixing in a research lab, causing container rupture and hazardous chemical release.
These events demonstrate how small process deviations or handling errors can trigger severe outcomes when incompatible materials interact. Incorporating reactive chemical testing and Chemical Reaction Hazard Assessments into process design and review helps identify such risks early and supports the development of effective protective measures.
